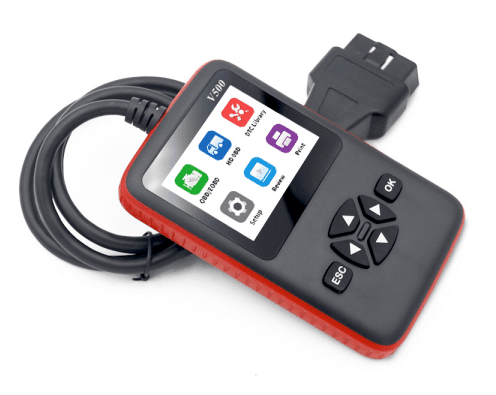

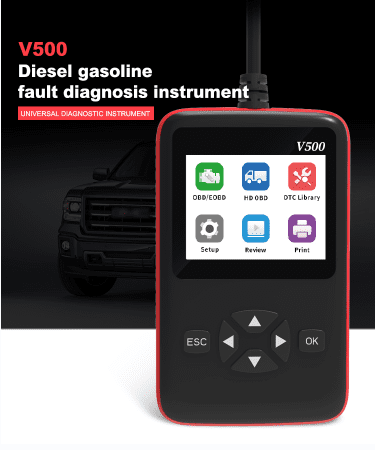

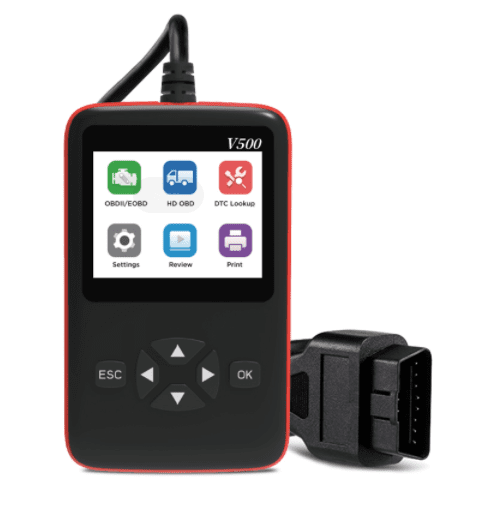

OBD Vehicle Diagnostic Scanner Diesel Vehicle OBD Scan Tool ECU Reader OBD + VAG OBD Key Programmer WiFi Elm327 OBD II Diagnostic System OBD Reader

SPU: PSV500

Trade name: Diesel vehicle fault detector; gasoline vehicle diagnosis instrument; obd 2 vehicle fault diagnosis instrument; engine diagnosis code card; vehicle diagnosis tool; vehicle information reading code card; diesel steam integrated diagnostic instrument factory direct selling (OBD connector)

technical parameter

Main control chip: LPC1765FBD100

Operating voltage: 9~16V

Operating current: 89 mA

Operating environment: -20 65℃

Storage temperature: -30 80℃

Overall dimension: 138.9 * 85 * 22mm

Packaging size: 175 * 258 * 62mm

Product weight: 500g

With packaging: 702g

Quantity quantity: 15 pcs

product description

1. Support the nine standard protocols for OBD II / EOBD.

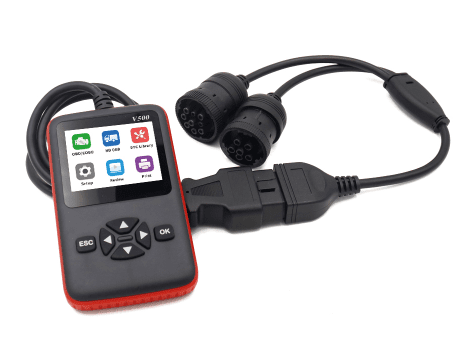

2. Support for common truck SAE J1939 / SAE J1708 protocols.

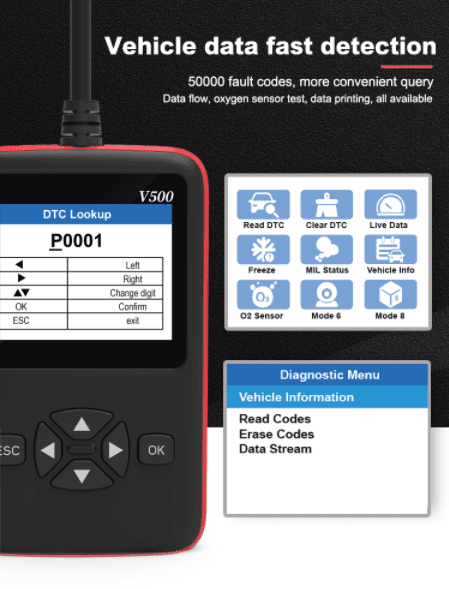

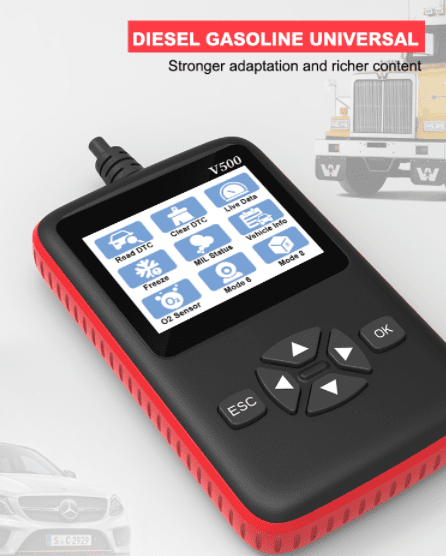

3. Support gasoline models to read; clear vehicle fault code; read data flow; freeze frame information; check MIL status; read vehicle information; oxygen sensor test; on-board monitoring (mode 6); evaporation system (mode 8) test.

4. Support truck models to read vehicle information; read / clear fault code information and data flow information.

5. Support fault code information query; with built-in about 50; 000 fault code library information.

6. Support the data flow playback function; view / delete the fault code; the data flow; and freeze the frame information.

7. Support USB printing function; can print fault code; data flow; freeze frame information.

8. Support for 6 languages: English; German; Spanish; French; Italian; Russian; and Chinese

9. Color screen display 2.8

10. Communication mode; OBD interface

11.CE/FCC/ROHS/UKCA Certification

Support agreement

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init; 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init; 10.4 Kbaud)

5. ISO14230-4 KWP (fast init; 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID; 500 Kbaud)

7. ISO15765-4 CAN (29bit ID; 500 Kbaud)

8. ISO15765-4 CAN (11bit ID; 250 Kbaud)

9. ISO15765-4 CAN (29bit ID; 250 Kbaud)

10. SAE J1939

11. SAE J1708/ J1587
